Con l’installazione di applicazioni e giochi sempre più di grandi dimensioni, con l’aumento della qualità delle fotocamere a bordo di smartphone e tablet e con il cambiamento delle esigenze di storage da parte dei singoli utenti, viene naturale una banale considerazione: si ha bisogno di più memoria interna. Nonostante esistano le famose micro-SD che aumentano la memoria a disposizione per l’immagazzinamento dei dati, avere di default una memoria interna più capiente e più veloce è sicuramente meglio.

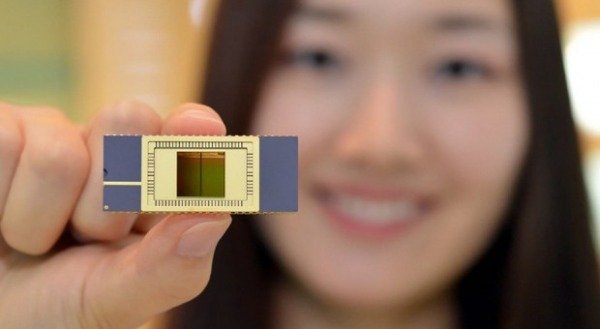

Samsung, quindi, tramite comunicato stampa, annuncia che ha da poco avviato la produzione di massa di nuove memorie NAND per smartphone e tablet. In particolare, queste memorie sono chiamate V-NAND, dove la lettera “V” sta per “Verticali“. La struttura interna di queste memorie, infatti, si sviluppa in verticale e possono anche essere chiamate 3D V-NAND. Questo perchè Samsung è riuscita a ridurre al minimo le dimensioni del singolo chip da 16 GB, in modo da collocare uno sopra l’altro tali chip fino a formare un’unica memoria che può arrivare anche a 384 GB. Al massimo possono essere sovrapposti 24 chip da 16 GB l’uno, almeno attualmente, ma questo numero è destinato a salire nel corso degli anni.
Probabilmente vi sarà quindi un’adozione graduale di queste memorie in attesa che le esigenze di storage dei singoli utenti crescano a tal punto da considerare “normale” avere circa 400 GB di memoria interna sul proprio dispositivo.
Di seguito potete dare un’occhiata al comunicato stampa ufficiale in inglese.
[spoiler title=”Samsung Starts Mass Producing Industry’s First 3D Vertical NAND Flash“]
Represents a breakthrough in overcoming NAND scaling limit; ushers in new 3D memory era
SEOUL, South Korea–(BUSINESS WIRE)–Samsung Electronics Co., Ltd., the world leader in advanced memory technology, today announced that it has begun mass producing the industry’s first three-dimensional (3D) Vertical NAND (V-NAND) flash memory, which breaks through the current scaling limit for existing NAND flash technology. Achieving gains in performance and area ratio, the new 3D V-NAND will be used for a wide range of consumer electronics and enterprise applications, including embedded NAND storage and solid state drives (SSDs).
“Following the world’s first mass production of 3D Vertical NAND, we will continue to introduce 3D V-NAND products with improved performance and higher density, which will contribute to further growth of the global memory industry.”
Samsung’s new V-NAND offers a 128 gigabit (Gb) density in a single chip, utilizing the company’s proprietary vertical cell structure based on 3D Charge Trap Flash (CTF) technology and vertical interconnect process technology to link the 3D cell array. By applying both of these technologies, Samsung’s 3D V-NAND is able to provide over twice the scaling of 20nm-class* planar NAND flash.
“The new 3D V-NAND flash technology is the result of our employees’ years of efforts to push beyond conventional ways of thinking and pursue much more innovative approaches in overcoming limitations in the design of memory semiconductor technology,” said Jeong-Hyuk Choi, senior vice president, flash product & technology, Samsung Electronics. “Following the world’s first mass production of 3D Vertical NAND, we will continue to introduce 3D V-NAND products with improved performance and higher density, which will contribute to further growth of the global memory industry.”
For the past 40 years, conventional flash memory has been based on planar structures that make use of floating gates. As manufacturing process technology has proceeded to the 10nm-class* and beyond, concern for a scaling limit arose, due to the cell-to-cell interference that causes a trade-off in the reliability of NAND flash products. This also led to added development time and costs.
Samsung’s new V-NAND solves such technical challenges by achieving new levels of innovation in circuits, structure and the manufacturing process through which a vertical stacking of planar cell layers for a new 3D structure has been successfully developed. To do this, Samsung revamped its CTF architecture, which was first developed in 2006. In Samsung’s CTF-based NAND flash architecture, an electric charge is temporarily placed in a holding chamber of the non-conductive layer of flash that is composed of silicon nitride (SiN), instead of using a floating gate to prevent interference between neighboring cells.
By making this CTF layer three-dimensional, the reliability and speed of the NAND memory have improved sharply. The new 3D V-NAND shows not only an increase of a minimum of 2X to a maximum 10X higher reliability, but also twice the write performance over conventional 10nm-class floating gate NAND flash memory.
Also, one of the most important technological achievements of the new Samsung V-NAND is that the company’s proprietary vertical interconnect process technology can stack as many as 24 cell layers vertically, using special etching technology that connects the layers electronically by punching holes from the highest layer to the bottom. With the new vertical structure, Samsung can enable higher density NAND flash memory products by increasing the 3D cell layers without having to continue planar scaling, which has become incredibly difficult to achieve.
After nearly 10 years of research on 3D Vertical NAND, Samsung now has more than 300 patent-pending 3D memory technologies worldwide. With the industry’s first completely functional 3D Vertical NAND memory, Samsung has strengthened its competitiveness in the memory industry as well as set the foundation for more advanced products including one terabit (Tb) NAND flash, while setting a faster pace for industry growth.
According to IHS iSuppli, the global NAND flash memory market is expected to reach approximately US $30.8 billion in revenues by the end of 2016, from approximately US $23.6 billion in 2013 with a CAGR of 11 percent, in leading growth of the entire memory industry.[/spoiler]
